Home/Applications/Hydroponics / Soilless Cultivation
Applications

Hydroponic Nutrient Management & Smart Irrigation

Nutrient Solution Management, EC/pH Control, Recirculating Irrigation & Remote Monitoring

GreenSpark provides smart fertigation control, sensor monitoring and cloud platform remote management solutions for hydroponic greenhouses, substrate cultivation, flower soilless cultivation, plant factories and nutrient recirculation systems, helping projects achieve stable nutrient supply, precise irrigation control and more efficient daily management.

Get a QuoteConsult Project Configuration
Hydroponic GreenhouseSubstrate CultivationEC/pH ControlRecirculating IrrigationRemote Monitoring
Hydroponic & Soilless Cultivation Smart Fertigation Control
EC: 1.85 mS/cm · pH: 6.1
Pump: Running · Tank: OK
Project Needs

What do hydroponic/soilless cultivation projects typically need to address?

Hydroponic and soilless cultivation projects demand higher standards for nutrient solution stability, irrigation frequency, EC/pH control and system reliability, requiring more refined data monitoring and automated control.

EC

Unstable Nutrient EC/pH

EC/pH fluctuations affect crop absorption and growth; continuous monitoring and stable control are needed.

T

Difficulty in Precise Irrigation Frequency

Different crops, growth stages and substrate conditions require different irrigation frequencies and durations.

M

High Manual Management Workload

Manual nutrient solution testing, fertilizer adjustment and data recording are time-consuming and prone to errors.

P

Recirculation System Risks

Recirculation pumps, liquid levels, return flow and pipeline conditions require continuous monitoring to avoid shortage, overflow or clogging.

Z

Complex Multi-Zone Management

Different cultivation zones may correspond to different crops, formulations and irrigation strategies, requiring independent zone management.

IoT

Lack of Remote Monitoring and Alarms

Managers need to remotely view nutrient solution data, equipment status and tasks, and receive timely alerts.

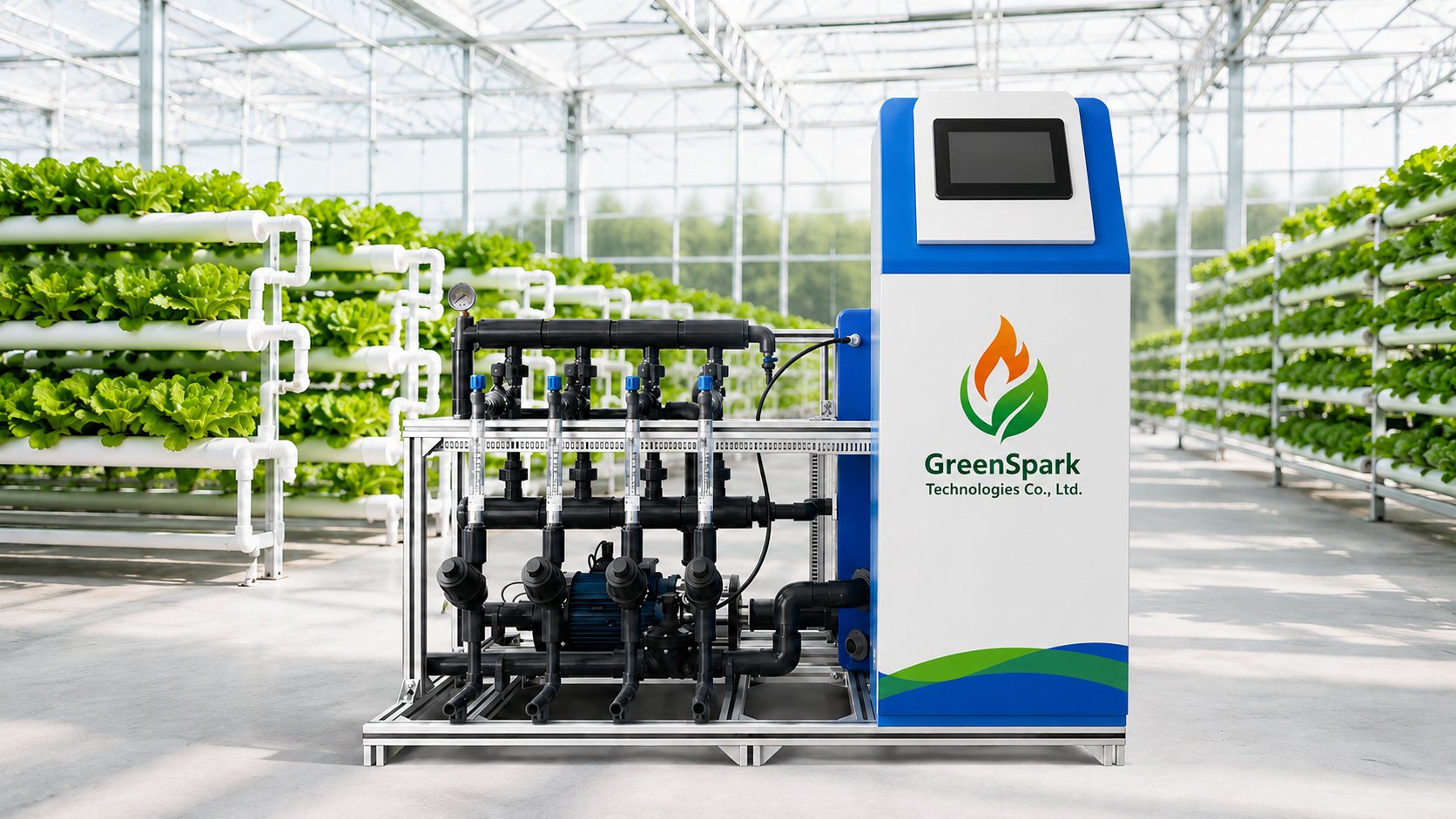

Hydroponic Greenhouse Nutrient & Recirculation System
Recommended Solution

Recommended System Solution

GreenSpark can recommend suitable fertigation control system configurations for hydroponic/soilless cultivation projects based on crop type, cultivation method, growing area, nutrient solution control requirements and remote management needs.

The system can connect nutrient tanks, dosing units, EC/pH sensors, recirculation pumps, irrigation valves, level sensors, IoT gateways and cloud platforms for nutrient solution management, recirculating irrigation, data monitoring, alarm notifications and remote platform management.

Nutrient Solution Management

Supports multi-channel stock solution injection, fresh water replenishment, pH adjustment and ratio management.

EC/pH Monitoring & Control

Real-time monitoring of nutrient solution data, with configurable automatic adjustment functionality.

Recirculating Irrigation Control

Controls recirculation pumps, irrigation pumps and valves, executing timed, periodic or zoned irrigation.

Remote Platform Management

View data, tasks, alarms and reports via App, PC backend or cloud platform.

System Components

System Components

GreenSpark can configure fertigation control equipment, nutrient monitoring equipment, recirculating irrigation equipment, sensors and remote platforms to form a complete hydroponic/soilless cultivation automation system.

Cloud Platform / Mobile AppData Monitoring · Task Management · Alarm Notifications · Reports
→
IoT GatewayRS485 · Modbus · 4G · LoRaWAN
→
Hydroponic / Soilless Fertigation Control SystemNutrient Formulation · EC/pH Adjustment · Recirculating Irrigation
→
Field EquipmentNutrient Tank · Dosing Pump · Level · Recirculation Pump · Valve · Return Flow
→
Cultivation AreaHydroponic Trough · Substrate Zone · Plant Factory
Clean Water Tank / SourceNutrient Tank / Stock TankpH Adjustment UnitMulti-Channel Dosing PumpEC/pH SensorLevel SensorRecirculation / Irrigation PumpHydroponic Trough / Substrate ZoneReturn LineIrrigation ValveIoT GatewayMobile App / PC Backend
Workflow

Workflow

The system achieves a complete closed loop from on-site control to remote management through nutrient formulation, EC/pH monitoring, recirculating irrigation and data upload.

Water SourceNutrient FormulationEC/pH Monitoring & AdjustmentRecirculating IrrigationCrop Root ZoneReturn Flow MonitoringData UploadCloud Platform Management

1. Water Source & Fresh Water Replenishment

Provides stable water source for the nutrient system, with optional filtration or water treatment equipment.

2. Nutrient Solution Formulation

Complete nutrient solution preparation through stock tanks, dosing pumps and pH adjustment units.

3. EC/pH Monitoring & Adjustment

Real-time monitoring of nutrient parameters to help maintain stable concentration and acidity.

4. Recirculating Irrigation Control

Controls recirculation pumps, irrigation pumps and valves, executing timed, periodic or zoned tasks.

5. Crop Root Zone Supply

Delivers nutrient solution to hydroponic troughs, substrate cultivation zones or plant factory growing layers.

6. Data Upload & Alarms

Uploads data to the cloud platform via IoT gateway, with support for anomaly alarm notifications.

Recommended Products

Based on hydroponic and soilless cultivation project needs, choose from fertigation control systems, sensors, irrigation controllers, greenhouse controllers and IoT platforms.

Hydroponic / Soilless Fertigation Control System

Hydroponic / Soilless Fertigation Control System

For nutrient solution management, EC/pH control, recirculating irrigation and remote platform management.

View Product →
Smart Fertigation Machine

Smart Fertigation Machine

For multi-channel fertilization, EC/pH monitoring, irrigation tasks and zone control.

View Product →
Agricultural Sensors & Weather Stations

Agricultural Sensors & Weather Stations

Collects EC, pH, level, temperature, humidity, light and environmental data.

View Product →
Irrigation Controller

Irrigation Controller

For recirculation pump, irrigation valve, zone irrigation and timed task control.

View Product →
Greenhouse Controller

Greenhouse Controller

For ventilation, shading, cooling pad/fan, misting, heating and supplemental lighting control.

View Product →
IoT Gateway & Cloud Platform

IoT Gateway & Cloud Platform

Connects equipment, sensors and controllers for remote monitoring, alarms and data management.

View Product →
Advantages

Solution Advantages

The GreenSpark hydroponic/soilless cultivation solution helps projects achieve more stable nutrient management, more efficient irrigation control and more convenient remote management.

EC

More Stable Nutrient Parameters

Through EC/pH monitoring and control, helps maintain stable nutrient concentration and acidity.

A

Reduced Manual Testing & Adjustment

Automatically records data, executes tasks and provides anomaly alerts, reducing manual management burden.

6

Adaptable to Multiple Cultivation Methods

Suitable for hydroponics, substrate cultivation, flower soilless cultivation, plant factories and research projects.

IoT

Remote Management & Project Customization

Configurable sensors, communication methods, control logic, cloud platforms and OEM/ODM services.

Applications

Typical Application Types

Covers hydroponic leafy greens, substrate fruit vegetables, strawberries, flowers, plant factories and research demonstrations.

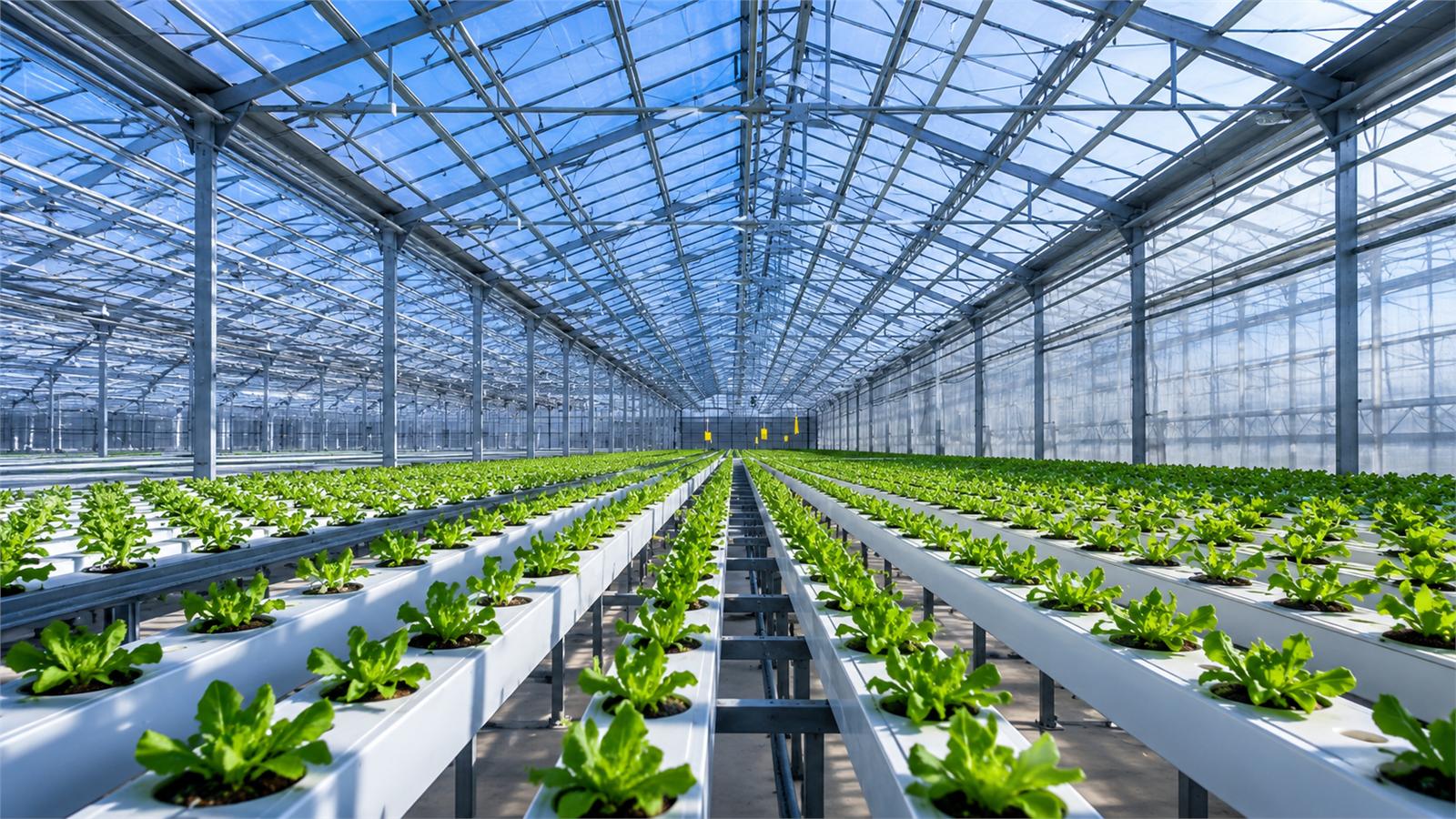

Hydroponic Leafy Greens

Hydroponic Leafy Greens

For nutrient recirculation and EC/pH management of hydroponic lettuce and leafy green crops.

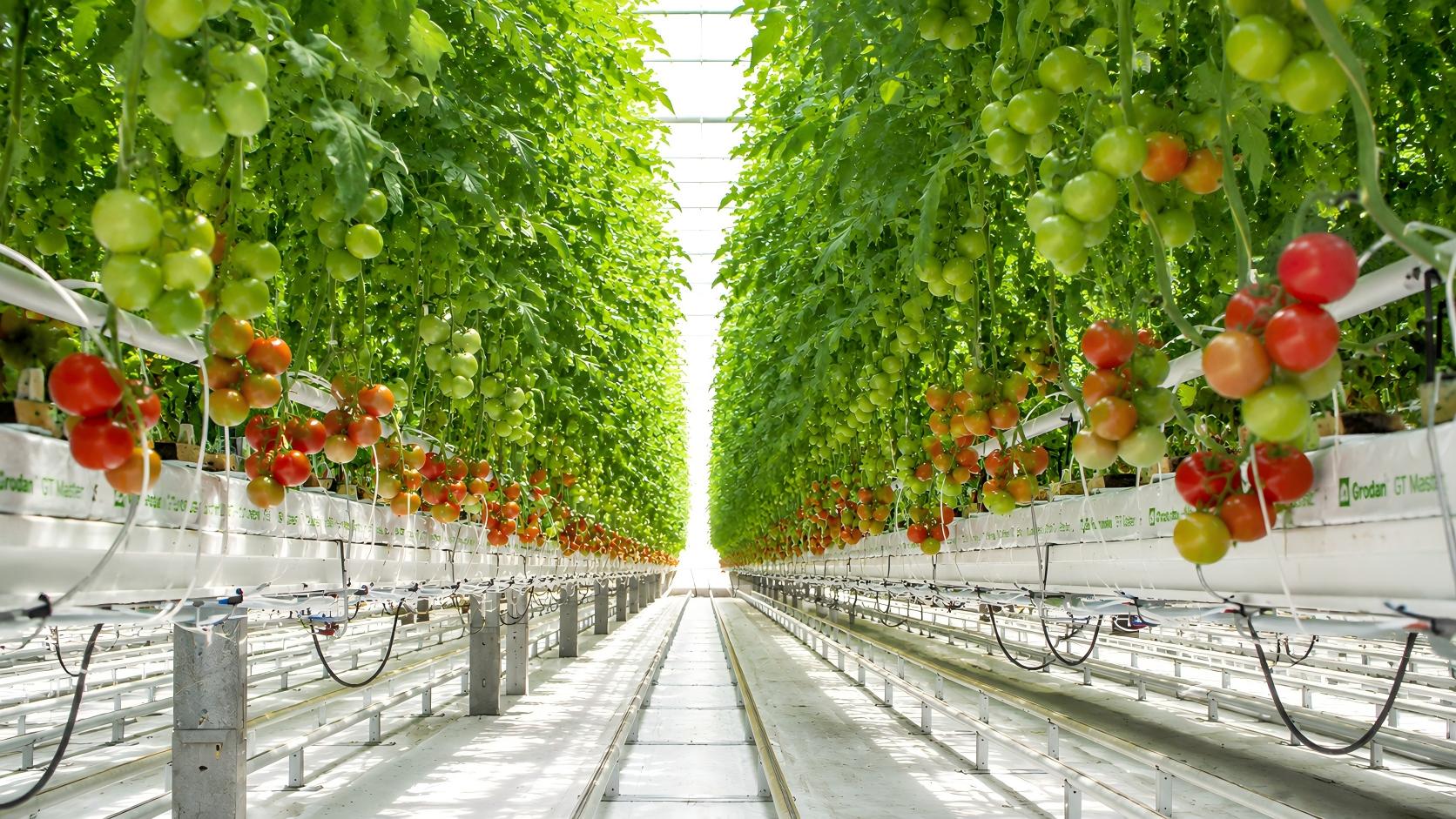

Substrate-Cultivated Tomato

Substrate-Cultivated Tomato

For fertigation and zone control in substrate-cultivated tomato, cucumber and similar greenhouse crops.

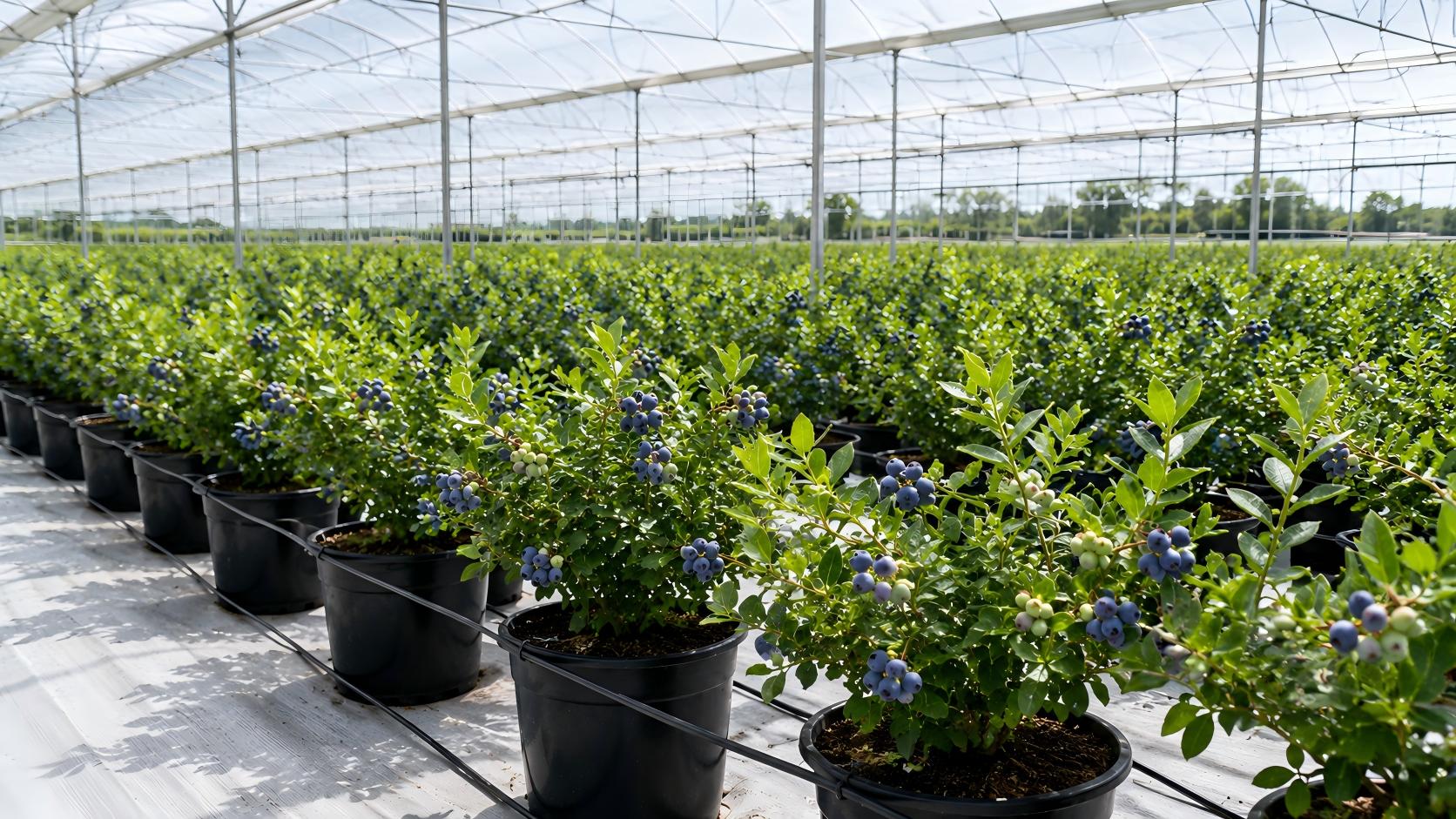

Strawberry Soilless Cultivation

Strawberry Soilless Cultivation

For precision fertigation management of strawberry greenhouses, berry crops and high-value crops.

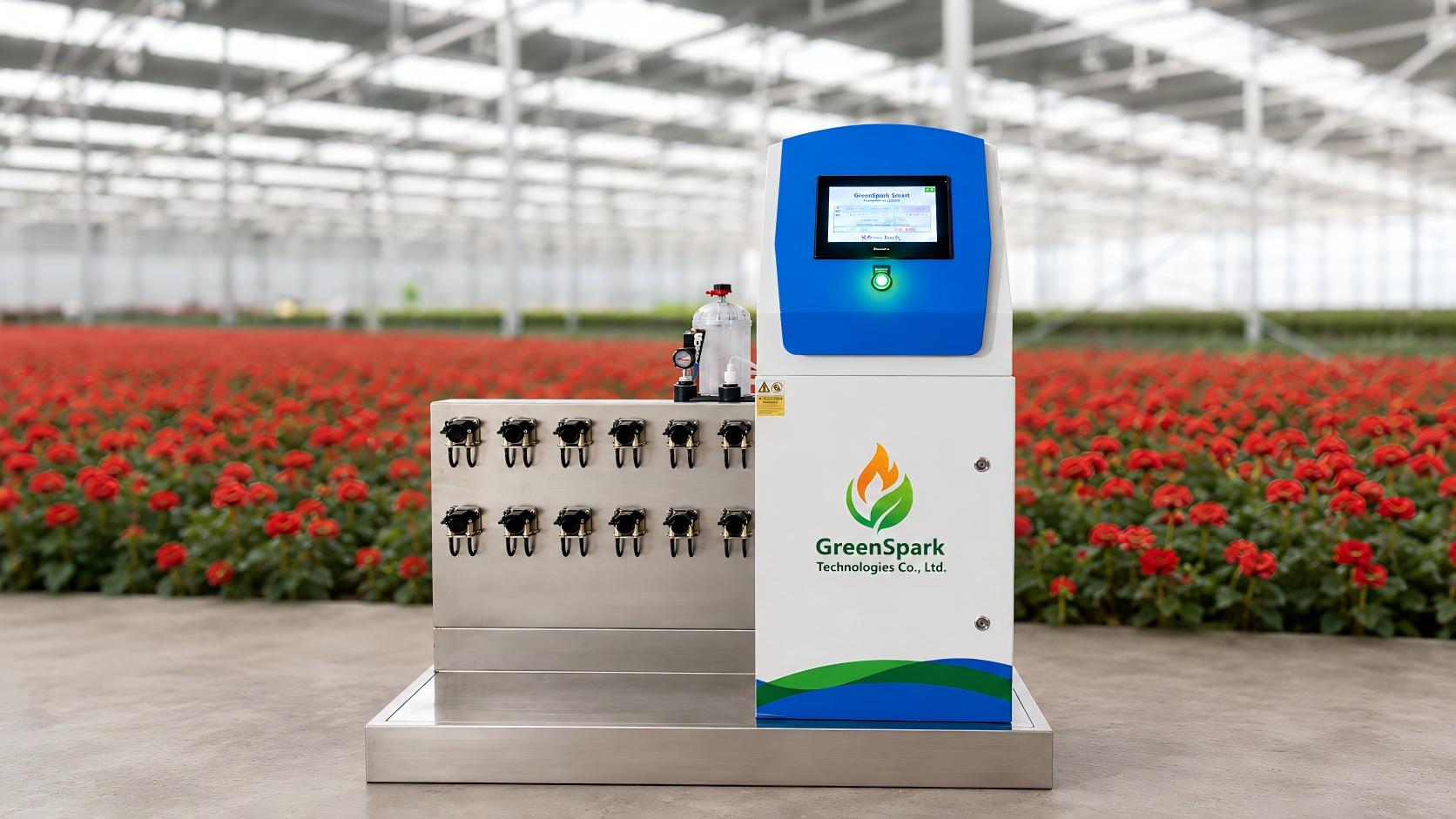

Flowers & Nursery

Flowers / Nursery

For soilless cultivation management in flower greenhouses, seedling greenhouses and nursery bases.

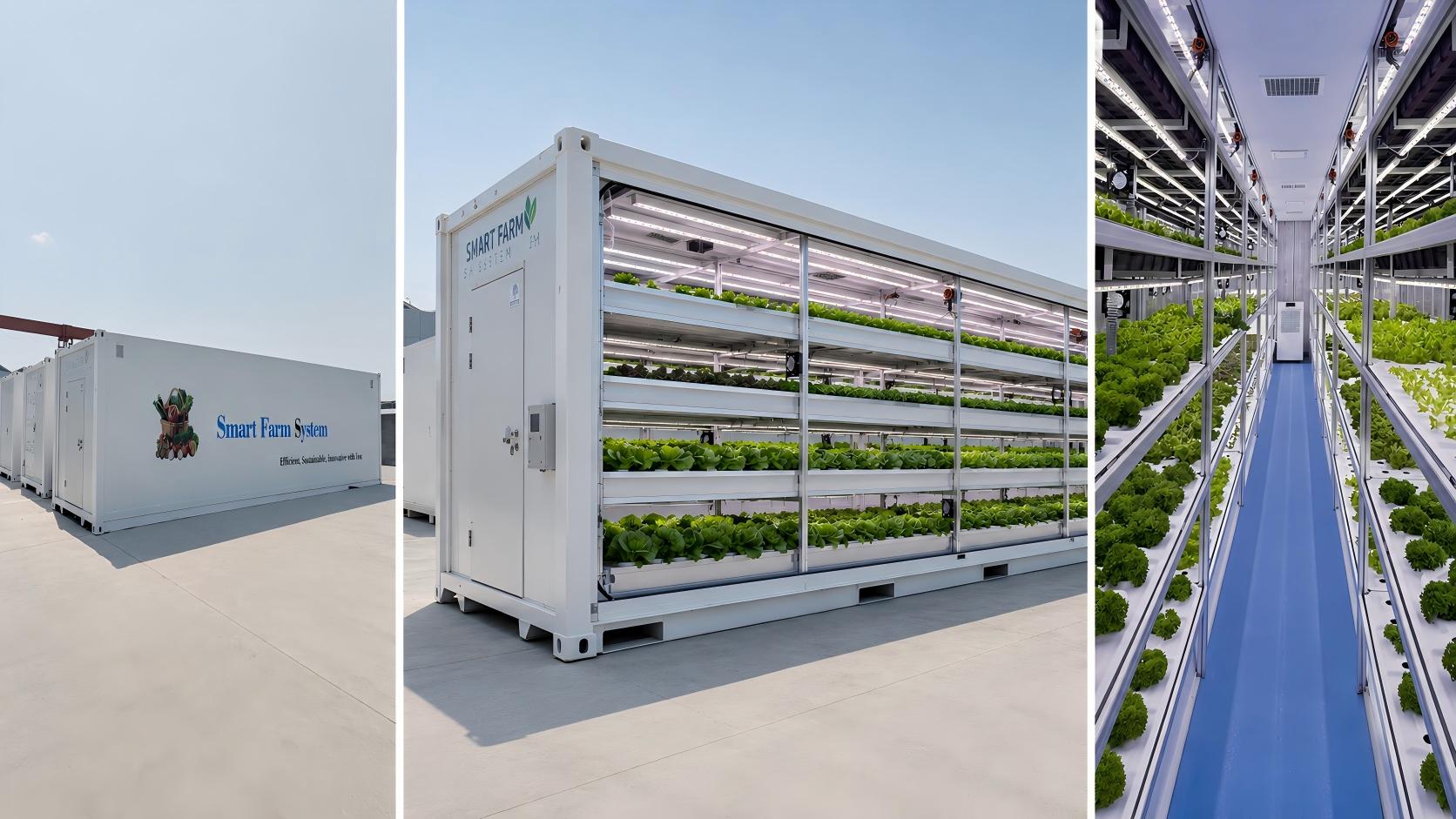

Plant Factory

Plant Factory

For nutrient solution control in vertical hydroponics, plant factories and high-density cultivation projects.

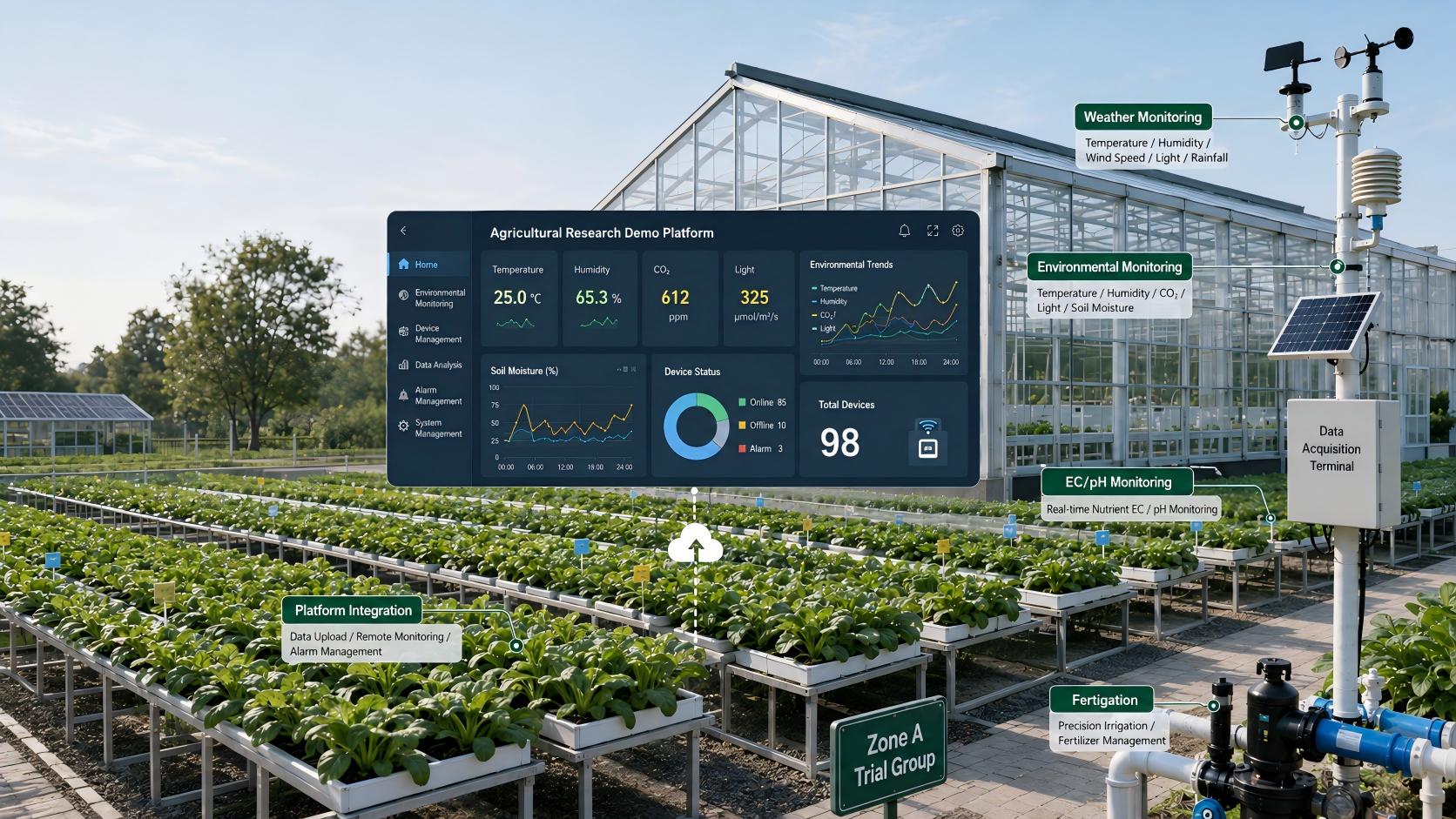

Research & Demonstration Projects

Research & Demonstration Projects

For agricultural research, demonstration parks and smart greenhouse data monitoring and platform integration.

Related Solutions

Related Solutions

Smart Fertigation Solution

For precision fertigation management in greenhouses, orchards, vineyards and high-value crops.

View Solution →

Smart Irrigation Control Solution

For pump, valve, zone irrigation, sensor-linked and remote control management.

View Solution →

Greenhouse Climate Control Solution

For ventilation, shading, cooling pad, misting, heating and environmental automation control.

View Solution →

Need to configure a system for your hydroponic or soilless cultivation project?

Tell us your crop type, cultivation method, growing area, hydroponic trough or substrate scale, EC/pH control needs, nutrient circulation method and remote management requirements, and we will recommend a suitable system configuration.

Get a QuoteSubmit Project Requirements
